Customer: European Space Agency (ESA)

Programme: Copernicus

Supply Chain: ESA > TAS > CS Group SPACE

Context

CS Group responsabilities for Study of the execution of Sentinel 2 processing system on a cloud infrastructure are as follows:

• Design
• Benchmark
• Prototype Development

The features are as follows:

• Initial studies and development
• Prototype development: reads L0c DS and produces L1C vDS
• Simulation of the processing of 4-days data
• Quality impacts
• IPF Benchmarks
• Cloud provider comparison
• Performance vs price chart
• Demonstration

Project implementation

The project objectives are as follows:

• Verify assumptions for the migration of the PDGS core processing to the cloud
• Develop a demonstrator

The processes for carrying out the project are:

• Agile methodology

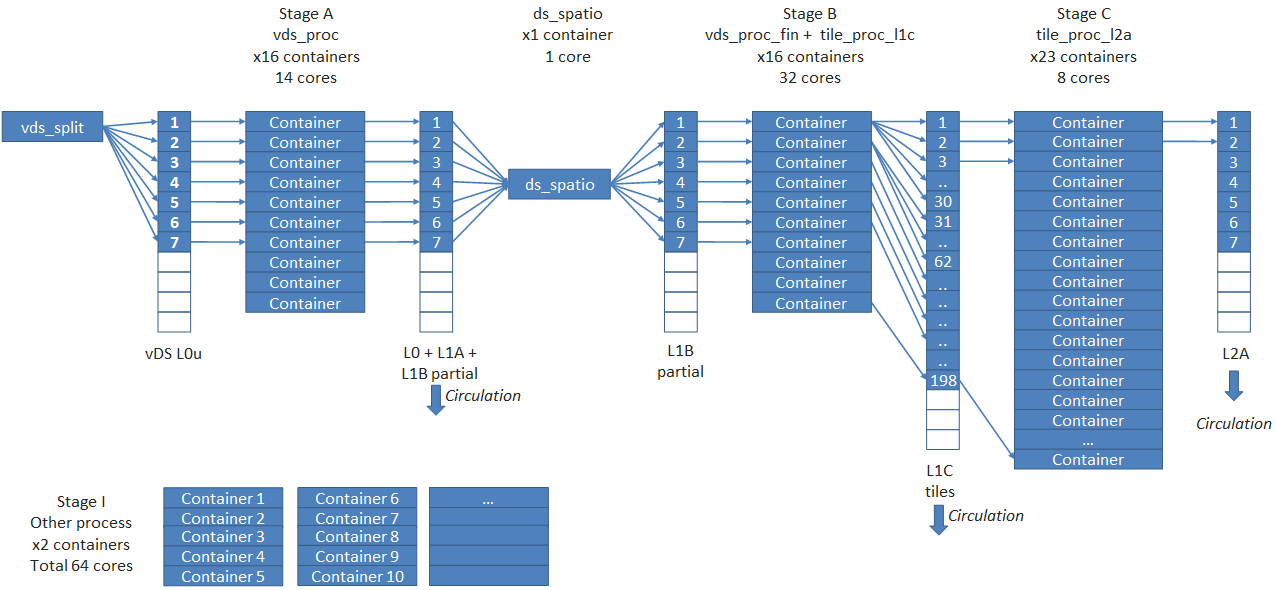

Technical characteristics

The solution key points are as follows:

• IPFs deployed into Docker containers.
• Choreography instead of orchestration with an asynchronous messaging system.
• DS divided into smaller datastrips called vDS. Their calculation time is shorter than that of a DS.
• vDSs processed in parallel on a set of containers called “stage”.

The main technologies used in this project are:

Domain	Technology(ies)
Hardware environment(s)	Orange cc3.4xlarge.4, OVH C2-60
Operating System(s)	Linux
Programming language(s)	python
Interoperability (protocols, format, APIs)	S2 job orders, S2 SAFE format
Production software (IDE, DEVOPS etc.)	Docker, S2 IPF
