Context

RUS Web Portal: A dedicated web portal is available. Users can create an account and submit a request for a preconfigured virtual machine. The Helpdesk composed of EO and IT experts can be reached via the dashboard by means of emails or chat.

RUS Virtual Desktop: Preconfigured image processing environments on the Cloud provided. Software and development tools are accessiblefrom a Linux-based virtual desktop. All preinstalled softwareand tools are open source (e.g., SNAP, Sentinel toolboxes, QGIS, OTB, Python, R). Users can install their own software and tools, download, import and export data, including imagery, and scripts.

RUS Training: The RUS service proposes training activities in the form of on-site sessions, webinars, and materials. All information, videos, webinars and other materials are available for free via the RUS web portal. Topics cover all kinds of thematic applications and Sentinel sensors.

Follow RUS on Twitter, Facebook, LinkedIn or our Website to hear about upcoming training activities and new material releases.

CS Group responsabilities for Copernicus Research and User Support are as follows:

Works in partnership with SERCO, NOVELTIS, Along-Track and CS Romania.
CS EO Experts are dedicated to Sentinel-2 support

Main Picture

The features are as follows:

Free service to end user
Provides preconfigured cloud computing environments
Helpdesk of EO experts supports users’ activities
Training materials released on a regular basis
Training sessions organized on a regular basis
Eligible activities: R&D, teaching, pre-commercial activities

Project implementation

The project objectives are as follows:

Promote uptake of Copernicus data
Support scaling up of R&D activities

The processes for carrying out the project are:

Semi-automated scripts to deploy preconfigured virtual machines on the Cloud
User Support through email, chat system, web portal
Training: use of cloned virtual machines, webinars

Technical characteristics

The solution key points are as follows:

RUS Web Portal is a specific web application used by 2850 registered users.
RUS Virtual Machines are preconfigured desktop-based image processing environments made available on the Cloud. A total of 1,100 VMs have been delivered so far.

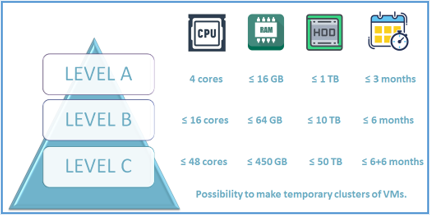

3 default VM configurations are possible from 4 to 48 cores.

Archi Picture

The main technologies used in this project are:

Domain	Technology(ies)
Hardware environment(s)	Cloud VM
Operating System(s)	Linux
Programming language(s)	Ruby, HTML 5
Production software (IDE, DEVOPS etc.)	Redmine, RocketChat
Main COTS library(ies)	SNAP, Sentinel toolboxes, QGIS, OTB, Python, R
