Customer: Centre National d’Etudes Spatiales (CNES)

Programme: CERES

Supply Chain: CNES > CS Group SPACE

Context

CS Group responsabilities for SSC IVV, support in Technical and Operational Qualification and LEOP of CERES mission are as follows:

• • Piloting of the IVV by CS GROUP, TQ/OQ tests by CNES

The features are as follows:

• AIV: development of LdP procedures and assignment, definition of strategy, plans and automated execution of tests (AIV tools for managing contexts, results, requirements) QT/OQ System Tests: preparation and support for the execution of compatibility/QT/OQ tests, development of ground operational procedures Support to Operations: resources integrated into the CNES teams for launch, in-flight acceptance and start of life (shifts, ground constraints)

Project implementation

The project objectives are as follows:

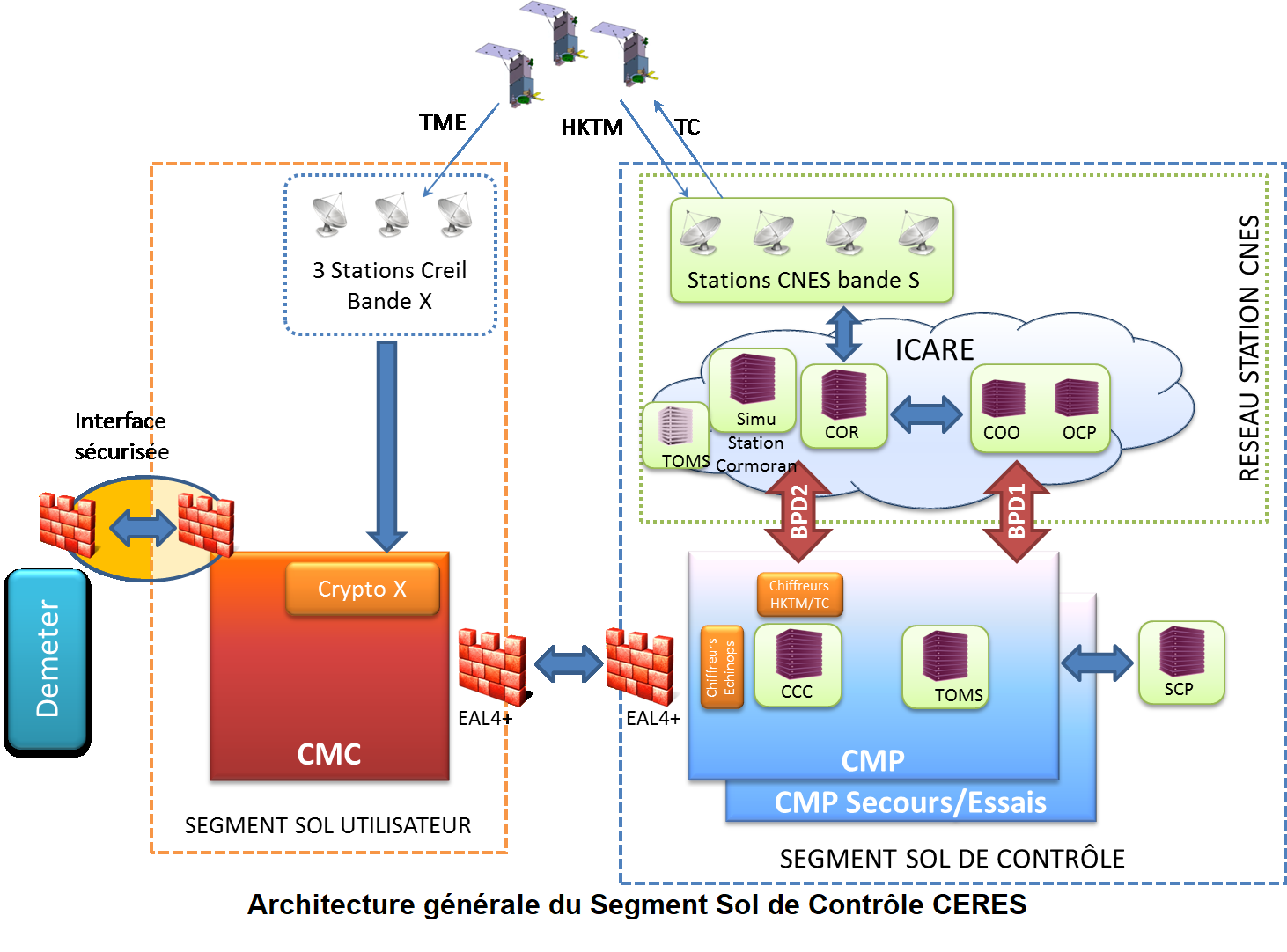

• Engineering assistance and support for the realization of the integration and system qualification of the components of the Ground Control Segments of CERES Satellites implementing the ISIS Product Line
• First missionization and integration of the LdP ISIS
• Defense context: strong security constraints

The processes for carrying out the project are:

• Requirements management (STB, IF): Testlink and Excel
• Specific Process for Assembly, Integration, Validation Qualification of Control Ground Segments
• Qualification system tests of control ground segments: Compatibility, Technical and Operational Qualification

Technical characteristics

The solution key points are as follows:

• Configuration and deployment of SSCs: Nominal, Standby, SCP/SSV (experts) and 10 test lines
• 1st operational qualification TM/TC ISIS chain: BDS configurations, sessions, SLE, COP, catalogs, TM visualization, TC histo
• 1st Implementation of ISIS operational concepts: procedures, automation
• Experienced AIV team including experts

The main technologies used in this project are:

Domain	Technology(ies)
Hardware environment(s)	Esx Dell, SAN, Appliance Netbackup, HP Thin Pro, switch, firewall, BPD, chiffreur/déchiffreur TC/TM
Operating System(s)	Red Hat 7.5, VMWare, NoMachine, PXE
Programming language(s)	Python, Bash
Interoperability (protocols, format, APIs)	XML, XTCE, Jason, CCSDS, standard CNES XIF
Production software (IDE, DEVOPS etc.)	TestLink, Git, Ansible
Main COTS library(ies)	Ldap, IDM, ZeroMQ, SGDB
