Customer: Centre National d’Etudes Spatiales - Commandement de l’Espace (CNES - CDE)

Programme: SSA

Supply Chain: CNES - CDE > CS Group SPACE

Context

CS Group responsabilities for Spatial dashboard - Space command are as follows:

Main Picture

The features are as follows:

Prototype of the first version of the TBS:
Proposal for an evolutionary architecture in accordance with the vision of a future spatial C2
Focus on the main screen of the TBS (summary vision), a page of the Geo satellites, and a first batch of transverse (import, comic access, etc.) functionalities or desirable for future versions
Flexibility to integrate new and refined needs of the CDE (better visibility on developments and choices made)

Project implementation

The project objectives are as follows:

Realization for the CNES (main customer) and for the space command (CDE) of an operational demonstrator of the TBS (spatial dashboard), which is the first SSA brick (Space Situational Awareness) of a future control center (C2) spatial military.

The processes for carrying out the project are:

The solution key points are as follows:

Web server (HTTPS and Secure Websocket, BD PostgreSql), Backend (Java, Jetty)
Spatial mechanical bookstores
Fronts access to services (TLE propagation)
Mapserver server (cartographic)
Data connectors, Internet reception (Tle on Spacetrack), calculated by CNES algorithms (osmosis: Tles, Aphrodite: threats)

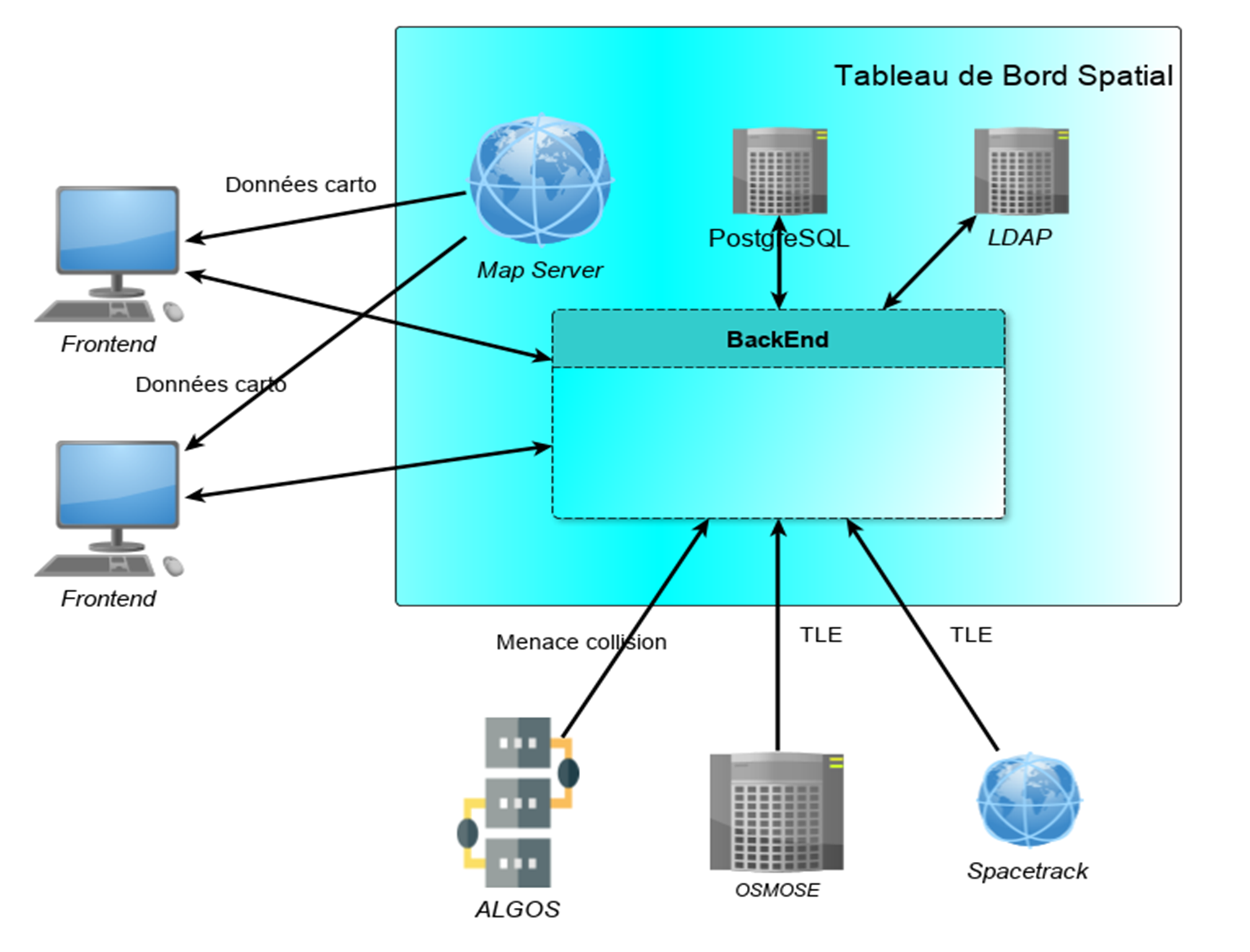

Archi Picture

The main technologies used in this project are:

Domain	Technology(ies)
Hardware environment(s)	PC
Operating System(s)	Linux, Windows
Programming language(s)	HTML, CSS, Typescript, ToPaZ, Java
Interoperability (protocols, format, APIs)	git, Tuleap
Main COTS library(ies)	OREKIT, PATRIUS, CESIUM Openlayers
