Context

The current suite of Sentinel missions are at the heart of the Copernicus programme, led by the European Commission. Each Sentinel mission is based on a constellation of two satellites to fulfil revisit and coverage requirements, providing robust datasets for Copernicus services. These missions carry a range of technologies, such as radar and multi-spectral imaging instruments for land, ocean and atmospheric monitoring.

The first Copernicus space component operations have been successfully in place since the launch of Sentinel-1A in 2014, with 7 satellites currently in routine operations. The initial approach to the design and implementation of land segment operations was designed in the early 2010s. To meet emerging user needs, additional High Priority Candidate Missions (HPCM), also called Expansion Missions, are to be launched between 2026 and 2028, prior to the next generation of Sentinels planned for the 2030s.

From 2019 to 2024, ESA is carrying out a redesign of the Copernicus ground system to bring about a rationalization of interfaces between services, standardization and simplification of interfaces, minimization of interdependencies between services. This overhaul will help meet the challenges of implementing new HPCM satellites: increased data volumes, industrial independence, deployment on public clouds, etc.

This redesign includes the following projects:

CSC Coordination Desk Service: Ground Segment Operations Configuration Coordination, Anomalies and Maintenance coordination, Mission Planning Interface Data Delivery Point Operations
CSC Data Distribution Service: Data Collection from PRIP interface, Data Access for en users, monitoring, reporting
CSC Data Processors re-engineering: re-engineering the current operational Level-0, Level-1 and Level-2 processors, harmonisation of the processors interfaces, revision of the processor output data packaging and format, maximisation of the use of a modular approach, open-source
CSC Reference System Service: Open Source Implementation of the CSC Production and Distribution functions (the RS Software), sampling reference production environment for continuous CSC Production validation, environment to benchmark and validate new processors, environment to integrate and possibly operate new data flows, access to validated and qualified processors to GS operational services.
CSC Production Services: encompasses all activities necessary to convert any Sentinel data acquired on XBand and EDRS into user level data available on PRIP interface, meeting the quality specification and delivering it for user access and archiving.

CS Group responsabilities for ESA CSC Production Service Sentinel 2 are as follows:

Turnkey supply of the optimised Sentinel-2B image processing system producing 160,000 files per day with strict timing constraints.
Level 2 support and maintenance.

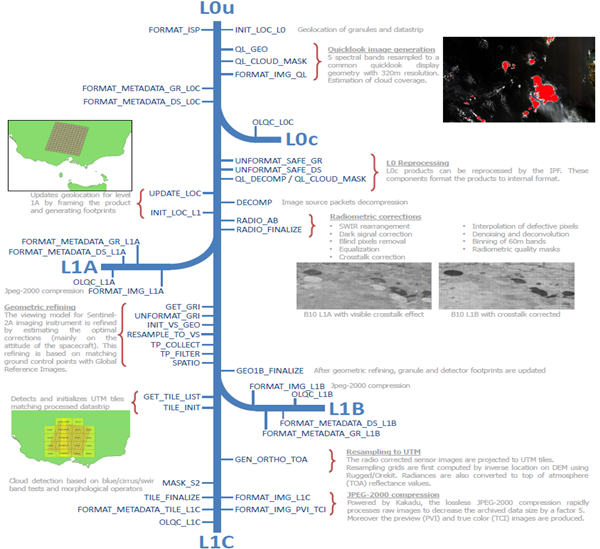

Main Picture

The features are as follows:

Raw data ingestion (DDIP, EDIP); Aux data ingestion and selection
Request Driven & Data Driven processing; Traceability; Products inventory; Baselines management
Workflow management with 2 levels orchestration; Priority management; Horizontal Scaling capacities
High performance big size local storage
Logging; Failure recovery; Automatic alert notifications; Operation tooling
Infrastructure agnostic; Open Source components
Compliant with Copernicus security requirements

Project implementation

The project objectives are as follows:

Develop, integrate and maintain the Systematic Production Service for Sentinel-2 satellite in a high availability platform.
7/7 operations: thanks to our state-of-the-art operations tools, the operations team is able to detect, analyse and resolve any production problems within a very short timeframe.

The processes for carrying out the project are:

Agile, Continuous integration

Technical characteristics

The solution key points are as follows:

The microservices architecture is based on a high-availability Kubernetes cloud cluster of around 100 virtual machines.
Non-linear workflow (SCDF)
A message based (Kafka) choreography system with dynamic scaling
A high-performance, finely optimised CEPH FS shared volume

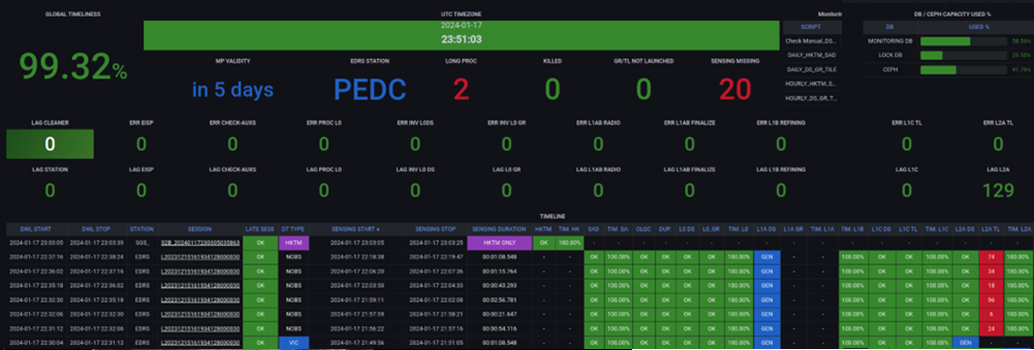

Archi Picture

The main technologies used in this project are:

Domain	Technology(ies)
Hardware environment(s)	cloud and K8S
Operating System(s)	linux CentOS
Programming language(s)	java, python, scdf
Interoperability (protocols, format, APIs)	maven, docker file, k8s, helm, yaml
Production software (IDE, DEVOPS etc.)	VS Code, Eclipse
Main COTS library(ies)	k8s, Docker, ElasticSearch, Kafka, Grafana, Prometheus, Keda, CephFS, Spring Boot, SCDF
